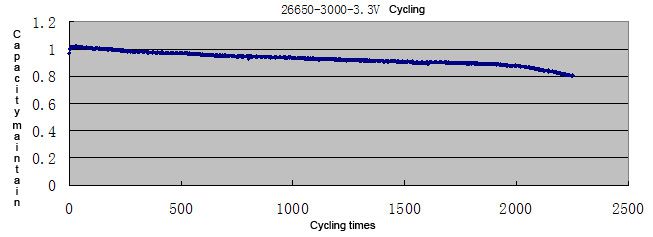

电池循环图
循环 | 恒流 | 恒压 | 总充电 | 恒流 | 放电 | 效率 | 定点 | 定点 | 放电 | 中值 | 比容量mAh_mg | 容量 |
100 | 2962.243 | 110.4085 | 3072.652 | 96.4067 | 3075.567 | 100.1 | 2768.093 | 55.4 | 3.0551 | 3.1572 | 0 | 1.007669 |
200 | 2928.08 | 107.0933 | 3035.173 | 96.4716 | 3038.856 | 100.1 | 2743.881 | 54.9 | 3.0503 | 3.1559 | 0 | 0.995641 |
300 | 2883.094 | 114.07 | 2997.164 | 96.1941 | 2999.751 | 100.1 | 2706.442 | 54.1 | 3.0495 | 3.1505 | 0 | 0.982829 |
400 | 2855.593 | 115.5169 | 2971.109 | 96.112 | 2975.585 | 100.2 | 2653.112 | 53.1 | 3.0457 | 3.149 | 0 | 0.974911 |
500 | 2839.72 | 113.8246 | 2953.544 | 96.1462 | 2955.55 | 100.1 | 2646.418 | 52.9 | 3.0464 | 3.1498 | 0 | 0.968347 |
600 | 2804.742 | 122.1777 | 2926.92 | 95.8257 | 2930.584 | 100.1 | 2598.111 | 52 | 3.0384 | 3.1465 | 0 | 0.960167 |
700 | 2770.601 | 132.6658 | 2903.266 | 95.4305 | 2905.57 | 100.1 | 2563.932 | 51.3 | 3.0409 | 3.1417 | 0 | 0.951972 |
800 | 2768.074 | 124.0246 | 2892.098 | 95.7116 | 2891.416 | 100 | 2587.284 | 51.8 | 3.039 | 3.1447 | 0 | 0.947334 |
900 | 2741.321 | 130.0292 | 2871.35 | 95.4715 | 2874.677 | 100.1 | 2580.553 | 51.6 | 3.0379 | 3.1439 | 0 | 0.94185 |
1000 | 2730.408 | 128.42 | 2858.827 | 95.5079 | 2862 | 100.1 | 2581.212 | 51.6 | 3.0376 | 3.1456 | 0 | 0.937697 |
1100 | 2691.333 | 141.3076 | 2832.64 | 95.0115 | 2834.578 | 100.1 | 2489.75 | 49.8 | 3.0346 | 3.1387 | 0 | 0.928712 |
1200 | 2660.54 | 153.192 | 2813.731 | 94.5556 | 2812.156 | 99.9 | 2495.617 | 49.9 | 3.0363 | 3.1403 | 0 | 0.921366 |
1300 | 2661.211 | 143.7798 | 2804.991 | 94.8741 | 2801.288 | 99.9 | 2466.432 | 49.4 | 3.0407 | 3.1378 | 0 | 0.917805 |
1400 | 2641.408 | 140.3939 | 2781.802 | 94.9531 | 2786.33 | 100.2 | 2457.312 | 49.2 | 3.0319 | 3.1308 | 0 | 0.912904 |
1500 | 2610.551 | 150.6719 | 2761.223 | 94.5433 | 2777.124 | 100.6 | 2461.441 | 49.3 | 3.0315 | 3.134 | 0 | 0.909888 |
1600 | 2600.497 | 152.0429 | 2752.54 | 94.4763 | 2762 | 100.3 | 2435.492 | 48.7 | 3.0346 | 3.1405 | 0 | 0.904933 |
1700 | 2588.714 | 152.8707 | 2741.585 | 94.424 | 2744.466 | 100.1 | 2436.283 | 48.8 | 3.0379 | 3.1391 | 0 | 0.899188 |
1800 | 2582.075 | 148.2295 | 2730.305 | 94.571 | 2732.837 | 100.1 | 2451.308 | 49 | 3.0354 | 3.1412 | 0 | 0.895378 |
1900 | 2553.821 | 154.786 | 2708.607 | 94.2854 | 2712.055 | 100.1 | 2389.704 | 47.8 | 3.034 | 3.1393 | 0 | 0.888569 |
2000 | 2503.153 | 167.9318 | 2671.085 | 93.713 | 2671.406 | 100 | 2364.86 | 47.3 | 3.0294 | 3.1309 | 0 | 0.875251 |
2100 | 2444.647 | 150.4253 | 2595.072 | 94.2034 | 2600.404 | 100.2 | 2272.233 | 45.5 | 3.0321 | 3.1364 | 0 | 0.851988 |
2200 | 2348.112 | 152.3361 | 2500.449 | 93.9076 | 2503.011 | 100.1 | 2216.479 | 44.4 | 3.0336 | 3.133 | 0 | 0.820079 |
